Getting started

This tutorial will show you how to create and implement a basic UI and contracts in a dApp using Canton dAppBooster.

The tutorial's source code is available here.

Basic configuration and running the stack

Docker.

open -a Docker

sudo systemctl start docker
# if using docker desktop:
# systemctl --user start docker-desktop

Barebones (Canton LocalNet).

Terminal

node scripts/localnet-config.mjs .canton-localnet # only needed the first time
cd .canton-localnet
pnpm exec canton-barebones start

Frontend.

Terminal

# back to root directory
cd ..
# Defaults to http://localhost:3012
pnpm run app:dev

Wallet Gateway.

Terminal

# Defaults to http://localhost:3030
pnpm run wallet-gateway

Create two parties

We'll need 2 parties for this tutorial. Open Wallet Gateway at http://localhost:3030 and enter the client secret unsafe when asked.

Create a party called alice, pick wallet-kernel as the signing provider, and tick Set as primary wallet.
Create a second party called bob the same way, without ticking primary.

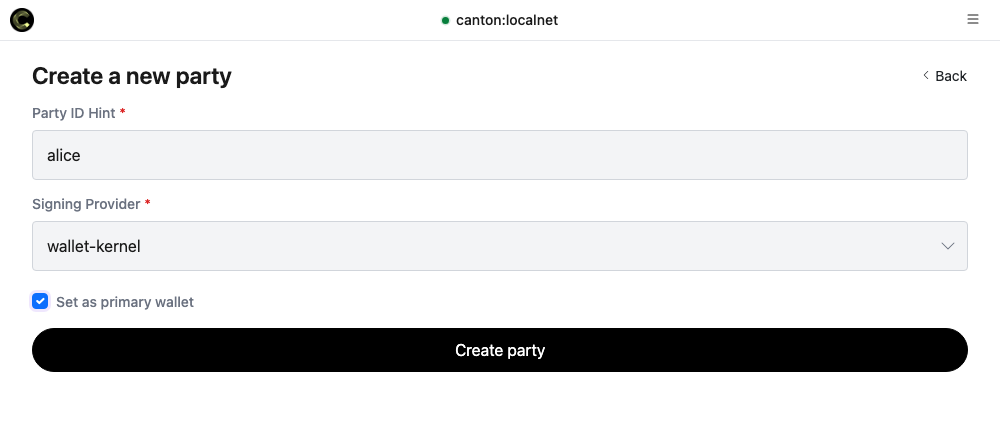

Creating a party in the Wallet Gateway

Basic page shell

Replace dapp/frontend/src/App.tsx with the following: a header and an empty body.

App.tsx

import { type CantonConnectConfig, CantonConnectProvider } from '@bootnodedev/canton-connect'
import { ThemeProvider } from '@bootnodedev/canton-dappbooster'
import { RemoteAdapter } from '@canton-network/dapp-sdk'
import { WALLET_GATEWAY_URL } from '@/utils/config'

const connectConfig: CantonConnectConfig = {
  appName: 'Notes',
  additionalAdapters: [new RemoteAdapter({ name: 'Wallet Gateway', rpcUrl: WALLET_GATEWAY_URL })],
}

export const App = (): React.JSX.Element => (
  <ThemeProvider>
    <CantonConnectProvider config={connectConfig}>
      <div className="min-h-screen bg-bg text-fg">
        <header className="flex items-center justify-between border-b border-border px-6 py-4">
          <span className="text-lg font-semibold">Notes</span>
        </header>
        <main className="mx-auto max-w-2xl space-y-6 px-6 py-10">
          {/* App contents */}
        </main>
      </div>
    </CantonConnectProvider>
  </ThemeProvider>
)

See the commit

Add the connect button

Let's add WalletButton to the app so users can connect their wallet to the app.

Import it and drop it in the header.

App.tsx

import { WalletButton } from '@bootnodedev/canton-dappbooster/connect'

App.tsx

<header className="flex items-center justify-between border-b border-border px-6 py-4">
  <span className="text-lg font-semibold">Notes</span>
  <WalletButton />
</header>

Now you can connect to the app by pressing Connect wallet on the header. Choose Wallet Gateway from the options list, and enter unsafe as the client secret.

See the commit

Add the Note contract

Remove the contents from the daml folder:

Terminal

rm -rf dapp/daml/*

Create dapp/daml/Note.daml.

Note.daml

module Note where

-- A line of text one party writes for another.
-- The author signs it, so only the author can create it.
-- The reader sees it, and is the only one who can acknowledge it.
template Note
  with
    author : Party
    reader : Party
    text : Text
  where
    signatory author
    observer reader

    -- Consuming, so acknowledging archives the note.
    choice Acknowledge : ()
      controller reader
      do pure ()

Create dapp/daml/daml.yaml.

daml.yaml

sdk-version: 3.4.11
name: note
source: .
version: 1.0.0
dependencies:
  - daml-prim
  - daml-stdlib

Build the dar:

Terminal

cd dapp/daml
dpm build

Go back to the project root and upload it:

Terminal

# back to root directory
cd ../..
# mint backend token
export CANTON_BACKEND_TOKEN=$(node scripts/mint-token.mjs ledger-api-user | awk 'NR==1')
# upload
curl -X POST http://localhost:2975/v2/packages \
  -H "Authorization: Bearer $CANTON_BACKEND_TOKEN" \
  -H "Content-Type: application/octet-stream" \
  --data-binary "@dapp/daml/.daml/dist/note-1.0.0.dar"

See the commit

Write a note

Create dapp/frontend/src/notes.ts with the commands and the reader for the ledger.

notes.ts

// A template id in `#package-name:Module:Template` form. The participant resolves it to whichever
// package id it holds, so a rebuild of the DAR needs no edit here.
export const NOTE_TEMPLATE_ID = '#note:Note:Note'

export type Note = {
  author: string
  contractId: string
  reader: string
  text: string
}

// JSON Ledger API v2 create command.
export const createNoteCommand = (author: string, reader: string, text: string) => ({
  CreateCommand: {
    templateId: NOTE_TEMPLATE_ID,
    createArguments: { author, reader, text },
  },
})

// JSON Ledger API v2 exercise command. Acknowledge takes no arguments.
export const acknowledgeCommand = (contractId: string) => ({
  ExerciseCommand: {
    choice: 'Acknowledge',
    choiceArgument: {},
    contractId,
    templateId: NOTE_TEMPLATE_ID,
  },
})

// The active-contracts read: every Note the party is a stakeholder of, at the given offset.
export const notesRequest = (partyId: string, offset: string | number) => ({
  requestMethod: 'post' as const,
  resource: '/v2/state/active-contracts',
  body: {
    filter: {
      filtersByParty: {
        [partyId]: {
          cumulative: [
            { identifierFilter: { TemplateFilter: { value: { templateId: NOTE_TEMPLATE_ID } } } },
          ],
        },
      },
    },
    activeAtOffset: offset,
    verbose: true,
  },
})

type AcsRow = {
  contractEntry?: {
    JsActiveContract?: {
      createdEvent?: {
        contractId?: string
        createArgument?: { author?: string; reader?: string; text?: string }
      }
    }
  }
}

export const toNotes = (rows: unknown): Note[] => {
  if (!Array.isArray(rows)) return []

  return (rows as AcsRow[]).flatMap((row) => {
    const created = row.contractEntry?.JsActiveContract?.createdEvent
    const { author, reader, text } = created?.createArgument ?? {}

    if (
      created?.contractId === undefined ||
      author === undefined ||
      reader === undefined ||
      text === undefined
    ) {
      return []
    }

    return [{ author, contractId: created.contractId, reader, text }]
  })
}

Create dapp/frontend/src/components/NoteForm.tsx.

NoteForm.tsx

import { useAccount, useExecute } from '@bootnodedev/canton-connect'
import { PartyIdInput } from '@bootnodedev/canton-dappbooster'
import { type FormEvent, useState } from 'react'
import { createNoteCommand } from '@/notes'

export const NoteForm = (): React.JSX.Element | null => {
  const { account } = useAccount()
  const { execute, error } = useExecute()
  const [reader, setReader] = useState('')
  const [text, setText] = useState('')

  if (account === undefined) {
    return null
  }

  const submit = (event: FormEvent): void => {
    event.preventDefault()
    // Sends the command through the wallet
    void execute({ commands: [createNoteCommand(account.partyId, reader, text)] })
    setText('')
  }

  return (
    <form className="space-y-3 rounded-lg border border-border p-4" onSubmit={submit}>
      <h2 className="font-semibold">Write a note</h2>
      <PartyIdInput onChange={setReader} placeholder="Reader party id" value={reader} />
      <input
        className="w-full rounded border border-border bg-surface px-3 py-2"
        onChange={(event) => setText(event.target.value)}
        placeholder="Your note"
        value={text}
      />
      <button
        className="rounded bg-primary px-4 py-2 text-primary-fg disabled:opacity-50"
        disabled={reader === '' || text === ''}
        type="submit"
      >
        Send
      </button>
      {error !== undefined && <p className="text-sm text-red-500">{error.message}</p>}
    </form>
  )
}

Add it to App.tsx.

App.tsx

import { NoteForm } from '@/components/NoteForm'

App.tsx

<main className="mx-auto max-w-2xl space-y-6 px-6 py-10">
  <NoteForm />
</main>

Using Wallet Gateway, open Parties and use Copy party ID on bob's card.

Paste bob's party id, write a line, and press Send. The wallet will open a window asking you to approve the transaction: approve it.

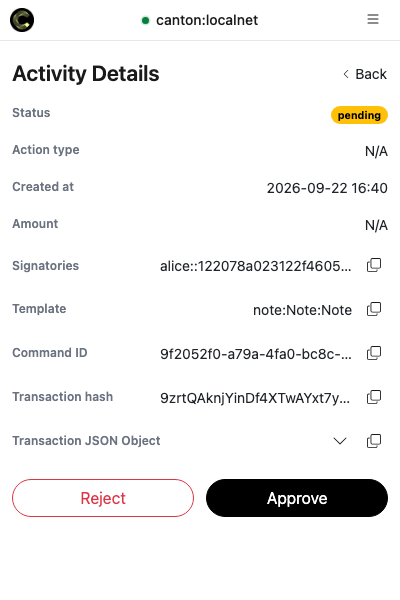

Approving a transaction in the Wallet Gateway

See the commit

List the notes and acknowledge them

Create dapp/frontend/src/useNotes.ts so we can read the active contracts through the wallet.

useNotes.ts

import { useAccount, useLedger } from '@bootnodedev/canton-connect'
import { useCallback, useEffect, useState } from 'react'
import { type Note, notesRequest, toNotes } from '@/notes'

const POLL_MS = 3000

/** Every Note the connected party can see, read again every few seconds. */
export const useNotes = (): { notes: Note[] } => {
  const { ledgerApi, isReady } = useLedger()
  const { account } = useAccount()
  const partyId = account?.partyId
  const [notes, setNotes] = useState<Note[]>([])

  const read = useCallback(async (): Promise<void> => {
    if (!isReady || partyId === undefined) {
      setNotes([])
      return
    }

    // A read is always taken at one offset, so the answer is a snapshot and not a moving target.
    const end = (await ledgerApi({ requestMethod: 'get', resource: '/v2/state/ledger-end' })) as {
      offset: string | number
    }

    setNotes(toNotes(await ledgerApi(notesRequest(partyId, end.offset))))
  }, [isReady, ledgerApi, partyId])

  // The wallet does not tell the page when a transaction lands, so the page asks.
  useEffect(() => {
    void read()
    const timer = setInterval(() => void read(), POLL_MS)
    return () => clearInterval(timer)
  }, [read])

  return { notes }
}

Create dapp/frontend/src/components/NoteList.tsx.

This is for the reader only, because only the reader can exercise the choice.

NoteList.tsx

import { useAccount, useExecute } from '@bootnodedev/canton-connect'
import { partyHint } from '@bootnodedev/canton-dappbooster'
import { acknowledgeCommand } from '@/notes'
import { useNotes } from '@/useNotes'

export const NoteList = (): React.JSX.Element | null => {
  const { account } = useAccount()
  const { notes } = useNotes()
  const { execute } = useExecute()

  return account === undefined ? null : (
    <section className="space-y-3 rounded-lg border border-border p-4">
      <h2 className="font-semibold">Notes</h2>
      {notes.length === 0 ? (
        <p className="text-sm text-fg-muted">Nothing here yet.</p>
      ) : (
        <ul className="space-y-2">
          {notes.map((note) => (
            <li
              className="flex items-center justify-between gap-4 rounded border border-border p-3"
              key={note.contractId}
            >
              <div>
                <p>{note.text}</p>
                <p className="text-xs text-fg-muted">from {partyHint(note.author)}</p>
              </div>
              {note.reader === account.partyId && (
                <button
                  className="rounded bg-primary px-3 py-1 text-sm text-primary-fg"
                  onClick={() => void execute({ commands: [acknowledgeCommand(note.contractId)] })}
                  type="button"
                >
                  Acknowledge
                </button>
              )}
            </li>
          ))}
        </ul>
      )}
    </section>
  )
}

Add it under <NoteForm />.

App.tsx

import { NoteList } from '@/components/NoteList'

App.tsx

<main className="mx-auto max-w-2xl space-y-6 px-6 py-10">
  <NoteForm />
  <NoteList />
</main>

See the commit

Read the note as `bob`

Go back to Wallet Gateway, open Parties, and press Set as primary on bob's card.

The dApp will switch to bob without reconnecting. You should be able to see the note bob received and an Acknowledge button.

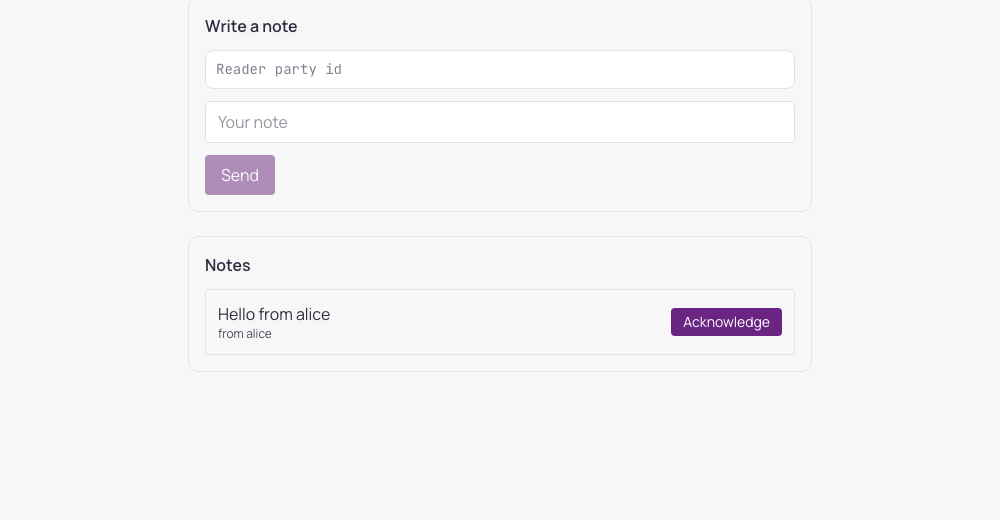

The finished app

Press Acknowledge and approve it. The note will be archived and disappear from the list.

Leftovers

The demo's pages and components are still in the project. Nothing reaches them, so they do no harm, but you can list unused files, exports and dependencies with:

Terminal

pnpm knip

The command doesn't delete them, so removing them is up to you.
